High-Voltage Stackable Battery System

HV Stackable 路 Model Ronda HV-Stack

Residential 路 High-Voltage

High-Voltage Stackable Battery System

Modular high-voltage stack · 2–8 packs

A high-voltage stackable battery system that grows from 2 to 8 packs — modular capacity for larger homes and light commercial sites that need a higher DC bus voltage.

5.12 / 6.14kWhEnergy per pack
2 – 8packsStack range
HVbusHigh-voltage architecture
>95%Round-trip efficiency

Modular HV stack — add packs as loads grow
Scalable from 2 to 8 packs
High-voltage bus reduces current and cable losses
Smart BMS with cell-level monitoring

Request a Quote

Download Datasheet

Key Features

Stackable High-Voltage Storage

A high-voltage stackable battery system that grows from 2 to 8 packs — modular capacity for larger homes and light commercial sites that need higher DC bus voltage.

Modular HV Stack
Add packs to scale energy while keeping a high-voltage DC architecture.
2 to 8 Packs
Grow capacity as loads increase without redesigning the whole system.
High Round-Trip Efficiency
High-voltage bus reduces current and cable losses.

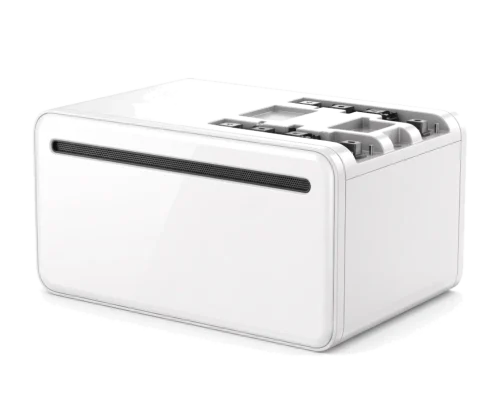

Ronda HV Stackable floor-standing battery

Wide Operating Temperature
Engineered for residential plant rooms and sheltered outdoor installs.
IP-Rated Enclosure
Protected against dust and water spray for real-world sites.
Smart BMS Protection
Cell-level monitoring with over-charge, over-discharge and thermal safeguards.

Product Data

Technical Specifications

ModelRonda HV-Stack

Electrical Characteristics

System Type: High-voltage stackable battery
Battery Type: LiFePO₄ (LFP)
Energy per Pack [kWh]: 5.12 / 6.14
Stack Configuration: 2 – 8 packs
Architecture: High-voltage DC bus
Round-trip Efficiency [%]: > 95

Protection & Certifications

BMS Protection: Cell-level over-charge / over-discharge / thermal
Enclosure: IP-rated for plant rooms / sheltered outdoor
Communication: CAN / RS485

Installation

Form Factor: Stackable modules
Application: Larger homes & light commercial
Expansion: Add packs without redesigning the system

Warranty

Standard Warranty: 10 years²

¹ Power and current may be affected by temperature, cell voltage, SOC and system protection settings. ² Refer to Ronda Warranty Terms and Conditions.

PDF · 1.3 MB
HV Stackable Datasheet

Model Ronda HV-Stack, version 1.0 — features and full technical specifications.
Download
PDF · 10.9 MB
Quick Start Guide

Unpacking, installation, wiring and first start-up of the battery system.
Download
On request
Inverter Compatibility List

The latest list of supported inverter brands and models, with communication settings.
Request the List

10-Year Standard Warranty

HV Stackable is covered by a 10-year standard warranty under the Ronda Warranty Terms and Conditions. Warranty handling is coordinated with our distributors and installer partners.

Installation & Commissioning

Floor-standing installation indoors or outdoors (IP65). Our technical team supports installers with wiring diagrams, inverter communication settings and parallel configuration of up to 8 units.

Documentation for Your Market

Certification reports (IEC 62619, EN IEC 61000-6-1 / 6-3), UN 38.3 test summary, SDS and shipping documentation are supplied for compliance and international delivery.

Installation

From Villa to Light Commercial

Ask for a Wiring Diagram

Parallel expansion
Scale with the household

Start with a compact stack and add modules when EV charging or heat pumps arrive.
IP65 · Indoor & outdoor
Higher voltage, cleaner cabling

HV architecture keeps cable runs leaner between battery and hybrid inverter.
