Liquid-Cooled All-in-One BESS Cabinet

Liquid-Cooled AIO 路 Model Ronda LC-AIO

C&I 路 Liquid-Cooled

Liquid-Cooled All-in-One BESS Cabinet

314 Ah liquid-cooled C&I cabinet

A liquid-cooled all-in-one commercial battery cabinet built on 314 Ah cells — dense energy, tight thermal control and a factory-integrated package for C&I sites.

100kWPower rating
215kWhEnergy capacity
314AhCell platform
LiquidcoolThermal management

High-capacity 314 Ah prismatic LFP cells
Liquid thermal management for heavy cycling
All-in-one cabinet for faster site deployment
Outdoor-rated enclosure with BMS & EMS hooks

Request a Quote

Download Datasheet

Key Features

Liquid-Cooled Commercial Storage

A liquid-cooled all-in-one commercial battery cabinet built on 314 Ah cells — dense energy, tight thermal control and a factory-integrated package for C&I sites.

314 Ah Cell Platform
High-capacity prismatic LFP cells for dense commercial energy.
Liquid Thermal Management
Stable cell temperatures under heavy cycling and hot climates.
All-in-One Cabinet
Battery, cooling and protection integrated for faster site deployment.

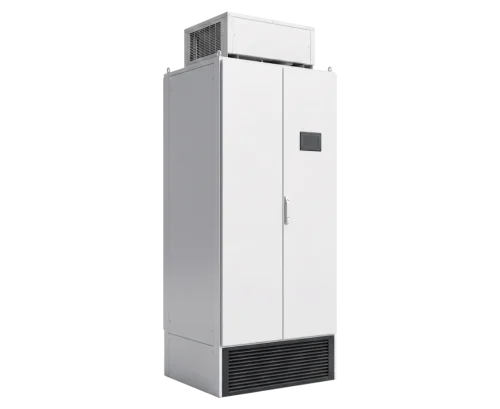

Ronda Liquid-Cooled AIO floor-standing battery

Wide Operating Temperature
Commercial-grade ambient range for outdoor plant pads.
Outdoor-Rated Enclosure
Built for pads beside factories, warehouses and campuses.
Smart BMS & EMS Ready
Cell-to-cabinet monitoring with open interfaces for site EMS.

Product Data

Technical Specifications

ModelRonda LC-AIO

Electrical Characteristics

System Type: Liquid-cooled all-in-one C&I cabinet
Battery Type: LiFePO₄ (LFP)
Cell Platform [Ah]: 314
Power [kW]: 100
Energy [kWh]: 215
Thermal Management: Liquid cooling

Protection & Certifications

BMS Protection: Cell-to-cabinet monitoring
Enclosure: Outdoor-rated commercial cabinet
Interfaces: Open EMS hooks

Installation

Form Factor: All-in-one outdoor cabinet
Application: Factories, warehouses, campuses
Deployment: Factory-integrated package

Warranty

Standard Warranty: 10 years²

¹ Power and current may be affected by temperature, cell voltage, SOC and system protection settings. ² Refer to Ronda Warranty Terms and Conditions.

PDF · 1.3 MB
Liquid-Cooled Cabinet Datasheet

Model Ronda LC-AIO, version 1.0 — features and full technical specifications.
Download
PDF · 10.9 MB
Quick Start Guide

Unpacking, installation, wiring and first start-up of the battery system.
Download
On request
Inverter Compatibility List

The latest list of supported inverter brands and models, with communication settings.
Request the List

10-Year Standard Warranty

Liquid-Cooled AIO is covered by a 10-year standard warranty under the Ronda Warranty Terms and Conditions. Warranty handling is coordinated with our distributors and installer partners.

Installation & Commissioning

Floor-standing installation indoors or outdoors (IP65). Our technical team supports installers with wiring diagrams, inverter communication settings and parallel configuration of up to 8 units.

Documentation for Your Market

Certification reports (IEC 62619, EN IEC 61000-6-1 / 6-3), UN 38.3 test summary, SDS and shipping documentation are supplied for compliance and international delivery.

Installation

Commercial Sites That Cycle Hard

Ask for a Wiring Diagram

Parallel expansion
Peak shaving and demand charge cut

Liquid cooling keeps packs in range during aggressive daily cycling.
IP65 · Indoor & outdoor
Factory and campus plant pads

A single outdoor cabinet shortens civil and electrical scope.
