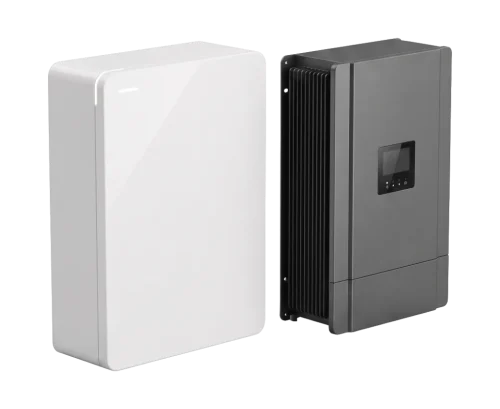

AC-Coupled Battery System

AC-Coupled 路 Model Ronda AC-Coupled

Residential 路 AC-Coupled

AC-Coupled Battery System

Retrofit storage for any PV brand

An AC-coupled battery system that works with an existing PV brand — add storage without replacing the grid-tied inverter already on the roof.

5kWAC power
10kWhStorage capacity
AnyPVBrand-agnostic retrofit
ACsideCoupling architecture

AC-coupled — keep the existing PV inverter
Works alongside a wide range of grid-tied PV platforms
Backup-ready with automatic transfer
Smart EMS integration for PV, battery and loads

Request a Quote

Download Datasheet

Key Features

Retrofit Storage for Existing PV

An AC-coupled battery system that works with an existing PV brand — add storage without replacing the grid-tied inverter already on the roof.

AC-Coupled Architecture
Connect on the AC side so existing PV inverters stay in place.
Brand-Agnostic Retrofit
Works alongside a wide range of grid-tied PV platforms.
Backup-Ready
Keep critical loads powered during outages with automatic transfer.

Wide Operating Temperature
Designed for residential plant rooms and sheltered outdoor sites.
IP-Rated Enclosure
Protection suited to garage and utility-room installs.
Smart EMS Integration
Coordinate PV, battery and loads through a unified energy manager.

Product Data

Technical Specifications

ModelRonda AC-Coupled

Electrical Characteristics

System Type: AC-coupled residential battery
Battery Type: LiFePO₄ (LFP)
AC Power [kW]: 5
Storage Capacity [kWh]: 10
Coupling: AC side (existing PV inverter stays)
PV Compatibility: Brand-agnostic retrofit

Protection & Certifications

BMS Protection: Multi-layer electrical and thermal
Enclosure: IP-rated for garage / utility room
EMS: Unified energy manager

Installation

Form Factor: AC-coupled retrofit package
Application: Homes with existing PV
Backup: Critical loads with automatic transfer

Warranty

Standard Warranty: 10 years²

¹ Power and current may be affected by temperature, cell voltage, SOC and system protection settings. ² Refer to Ronda Warranty Terms and Conditions.

PDF · 1.3 MB
AC-Coupled System Datasheet

Model Ronda AC-Coupled, version 1.0 — features and full technical specifications.
Download
PDF · 10.9 MB
Quick Start Guide

Unpacking, installation, wiring and first start-up of the battery system.
Download
On request
Inverter Compatibility List

The latest list of supported inverter brands and models, with communication settings.
Request the List

10-Year Standard Warranty

AC-Coupled is covered by a 10-year standard warranty under the Ronda Warranty Terms and Conditions. Warranty handling is coordinated with our distributors and installer partners.

Installation & Commissioning

Floor-standing installation indoors or outdoors (IP65). Our technical team supports installers with wiring diagrams, inverter communication settings and parallel configuration of up to 8 units.

Documentation for Your Market

Certification reports (IEC 62619, EN IEC 61000-6-1 / 6-3), UN 38.3 test summary, SDS and shipping documentation are supplied for compliance and international delivery.

Installation

Add Storage Without Reworking PV

Ask for a Wiring Diagram

Parallel expansion
Homes with existing solar

Keep the current PV inverter and add AC-coupled storage for self-consumption and backup.
IP65 · Indoor & outdoor
Fast retrofit projects

Fewer DC changes mean shorter install windows for homeowners already on solar.
